Pumping unit


Pumping Unit

Our pumping units are autonomous installations carrying out groundwater skimming out of previously drilled wells.

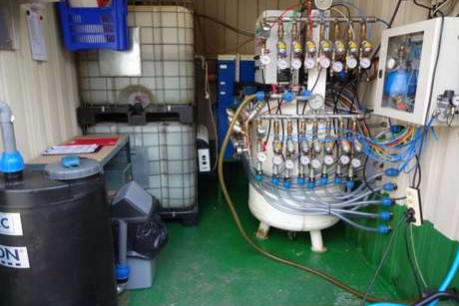

A pumping unit contains all the equipment necessary for the vacuum suction of the free phase due to be skimmed, the decantation of the prod-uct and the pretreatment of effluents using a coalescence separator.

When skimming is carried out at a depth greater than the physical limit imposed by vacuum (>8.5m), an intermediate chamber is used while maintaining the vacuum suction.

The power consumption of the pumping unit is less than 1KWH.



We offer 2 types of pumping units, the DS 500 and the DS 100, each for a specific use:

DS 500

The DS 500 unit is the industrial base unit for skimming free phase on the aquifer.

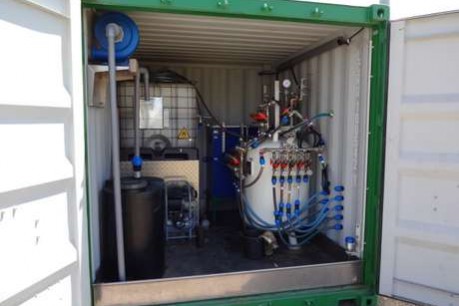

It includes a 10-foot standard container (more or less 3 meters) equipped with all the necessary equipment for the vacuum suction of the free phase.
The DS 500 can be connected to a number of wells ranging between 6 to 40 wells for a pump-ing depth < 8.5m and between 0 to 18 wells for a pumping depth > 8.5m.

Please contact us for any specific request.

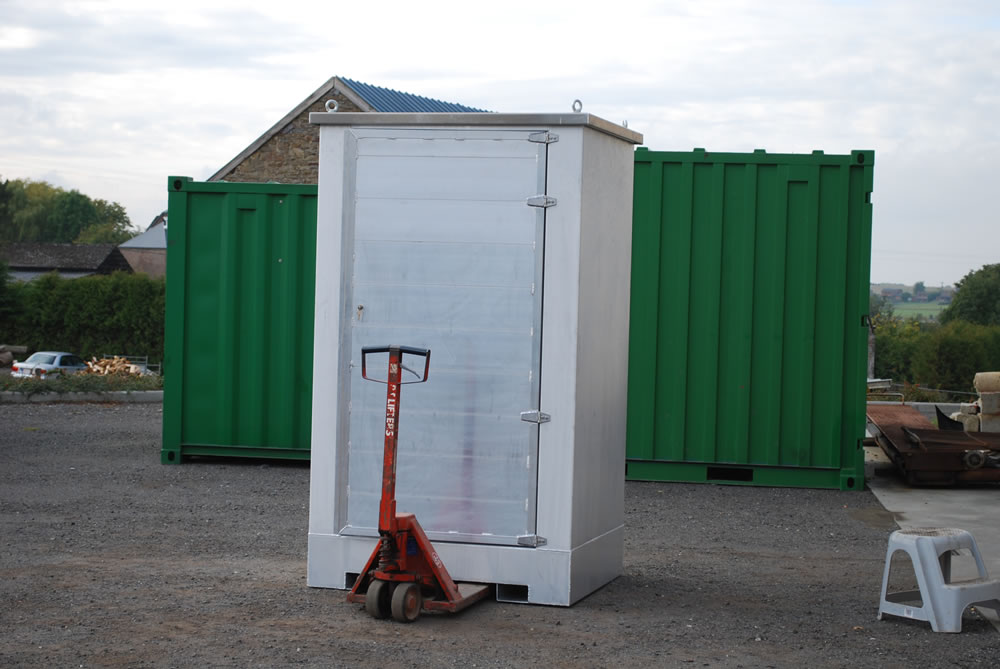

DS 100

The DS100 unit is a compact unit that has the same functionality as the DS500 unit.
It can be connected to a maximum of 5 wells for a pumping depth < 8.5m or > 8.5 m.
It has a limited automatic operating reserve. It is used for testing, for emergency response or when available space is limited.

Please contact us for any specific request.
